Menu Operation

Press the power button to turn the monitor on (battery must be installed and charged). Press the “MENU” button to enter OSD main menu.

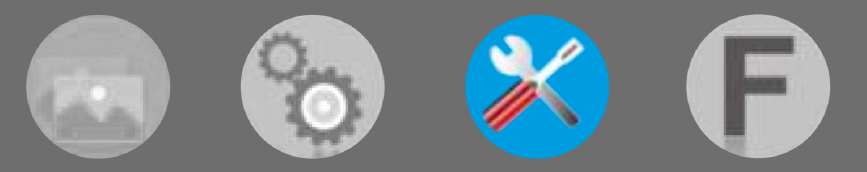

Use the “< ” or “ >” buttons to select one of four menu categories. Once in one of the categories, use the “^” or “v” to navigate to the menu line. Change the menu options using the “< ” or  “> ” buttons. Click “MENU” to save changes.

Menu Option 1

• Pic. Mode - adjust Brightness, Contrast, Saturation, Sharpness.
• Brightness - adjust image's brightness.
• Contrast - adjust the brightest and the darkness ratio of the image.
• Saturation - adjust color concentration.
• Sharpness - adjust image edge sharpness.
• Color Temp - Choose either 6500K or 9300K or ‘User’. When ‘User’ is selected, adjust the R/G/B for different Color Temp.
• Tint - adjust the image cool and warm hue.

Menu Option 2

• Language - English,中文, Español, Português, Français, Nederlands, Deutsch, 日本語
• Aspect Ratio - adjust the image Aspect Ratio.
• No Signal - select the screen background color when No Signal.
• OSD Trans - adjust the transparent of image background when menu display.
• OSD H - adjust the OSD position horizontally.
• OSD V - adjust the OSD position vertically.
• Camera Mode - select the same display system as Camera.
• Zoom All - zoom monitor in or out.
• OSD Time - adjust the menu time.
• U/D Zoom - adjust the proportion of the image Up and Down to Zoom In or Zoom Out.
• L/R Zoom - adjust the proportion of the image Left and Right to Zoom In or Zoom Out.
• Backlight - adjust the brightness of screen.
• Power On - select Manual or Auto.
• USB Upgrade - use button to confirm firmware upgrade. The monitor will automatically restart.
• Reset - reset to original factory settings.

Menu Option 3

• Zoom - Image Zoom function.
• Anamorphic - Off, 1.3X, 2.0X, 2.0X MAG
• Focus Assist - sharpens edge of images.
• Peaking Color - Red, Green, Blue
• Over Exposure - Off, On
• Exposure Lever - 1~100 IRE
• Nine Grid - view up to 9 captured video images.
• Ratio Marker - Off, 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1.
• Mark Color - Red, Green, Blue, Black, White.
• Mark Width - 1~7
• Modified Mark - 0~6
• Mark Color - Red, Green, Blue, Black, White.
• Mark Width - 1~7
• Modified Mark - 0~6

Menu Option 4

• F1 F2 - assigns your custom settings to F1 and F2 buttons.
